Mass production of a series of high-frequency pulse tube cryocoolers



Typical long-life compact single-stage coaxial high-frequency pulse tube cryocooler in  65-110 K temperature ranges



Typical long-life compact single-stage coaxial high-frequency pulse tube cryocooler in 30-60 K temperature ranges

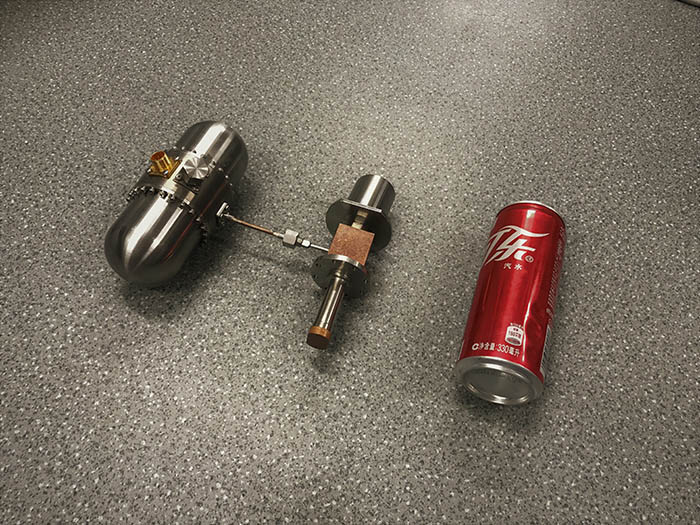

Comparison of the complete machine of a standard cola can and the 500 g micro high-frequency pulse tube cryocooler



Compact, lightweight, long-life two-stage pulse tube cryocooler (can be cooled at 15-300 K)



Compact, lightweight, long-life three-stage pulse tube cryocooler (can be cooled at 5-300 K)



Four-stage high-frequency pulse tube cryocooler (can be cooled at 3.3-300 K)




Five-stage high-frequency pulse tube cryocooler (can be cooled at 2.2-300 K)

Main products: compact, lightweight, long-life high-frequency pulse tube cryocoolers which can fully meet the customized cooling needs of infrared detectors



In the field of infrared detection, we developed the single and multi-stage compact, lightweight and long-life high-frequency pulse tube cryocoolers covering 2 K to ambient temperature, and the cooling performance reached the international advanced standards. The cooling power range of the cryocoolers is from milliwatts to hundreds of watts. The weight of the micro one is 500 g, while the weight of the medium-sized one is less than 10 kg. A single cryocooler can reach more than 50,000 hours of MTBF, and meet the customized cooling needs of infrared detectors with short, medium, long and very-long wavelengths.
